Horizontal Multistage Centrifugal Pump

Installing and maintaining DAYUAN horizontal centrifugal pumps is a breeze due to their easily accessible internal parts. You have the flexibility to select the appropriate shaft design based on your desired pumping pressure. For applications with low suction, an overhang shaft works best, whereas an in-bearing shaft is ideal for high suction pressure. These horizontal centrifugal pumps can be conveniently coupled with external accessories like turbines, electric motors, or fuel-powered engines for secure operation. Moreover, their compact design allows them to be utilized effectively in indoor settings where vertical space is often limited.

APPLICATION AREA

1. Industrial circulation system

2. Washing/cleaning system

3. Pressure booster system

4. Water/liquid transfer

5. Agricultural irigation

OPERATING CONDITIONS

1. Ambient temperature: Max. +40°C

2. Liquid temperature range: +0℃~+70℃

3. High temperature resistant model: Max 105C

4. Operating pressure: Max. 10 kg/cm²

5. Inlet pressure: Max. 6 kg/cm

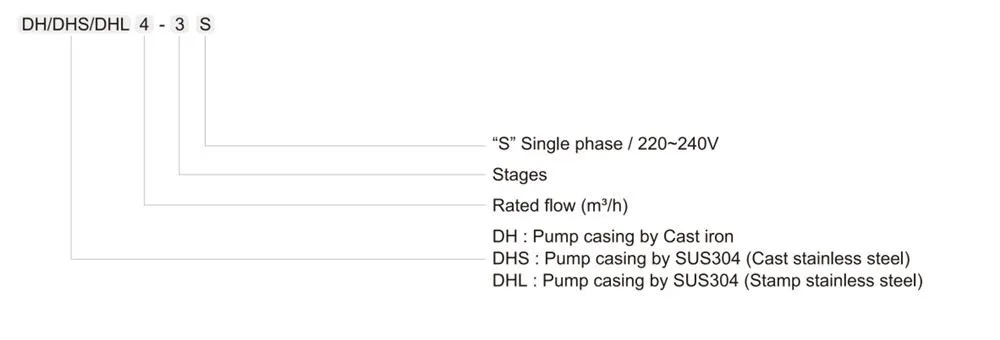

MODEL INSTRUCTION

TECHNICAL DATA

PERFORMANCE CURVE

DIMENSION
